The lift may arrive at the construction site on schedule, but installation can still be delayed if the building is not ready. BG Elevators helps project teams understand the site conditions required before installation, while BG Elevators can help coordinate factors such as shaft readiness, pit condition, power supply, access, scaffolding, and approvals. A wet pit, incomplete machine room, unavailable three-phase connection, or unfinished landing can keep elevator material unused for weeks. Understanding these factors early allows builders to coordinate civil, electrical, and finishing work and plan a more realistic handover date.

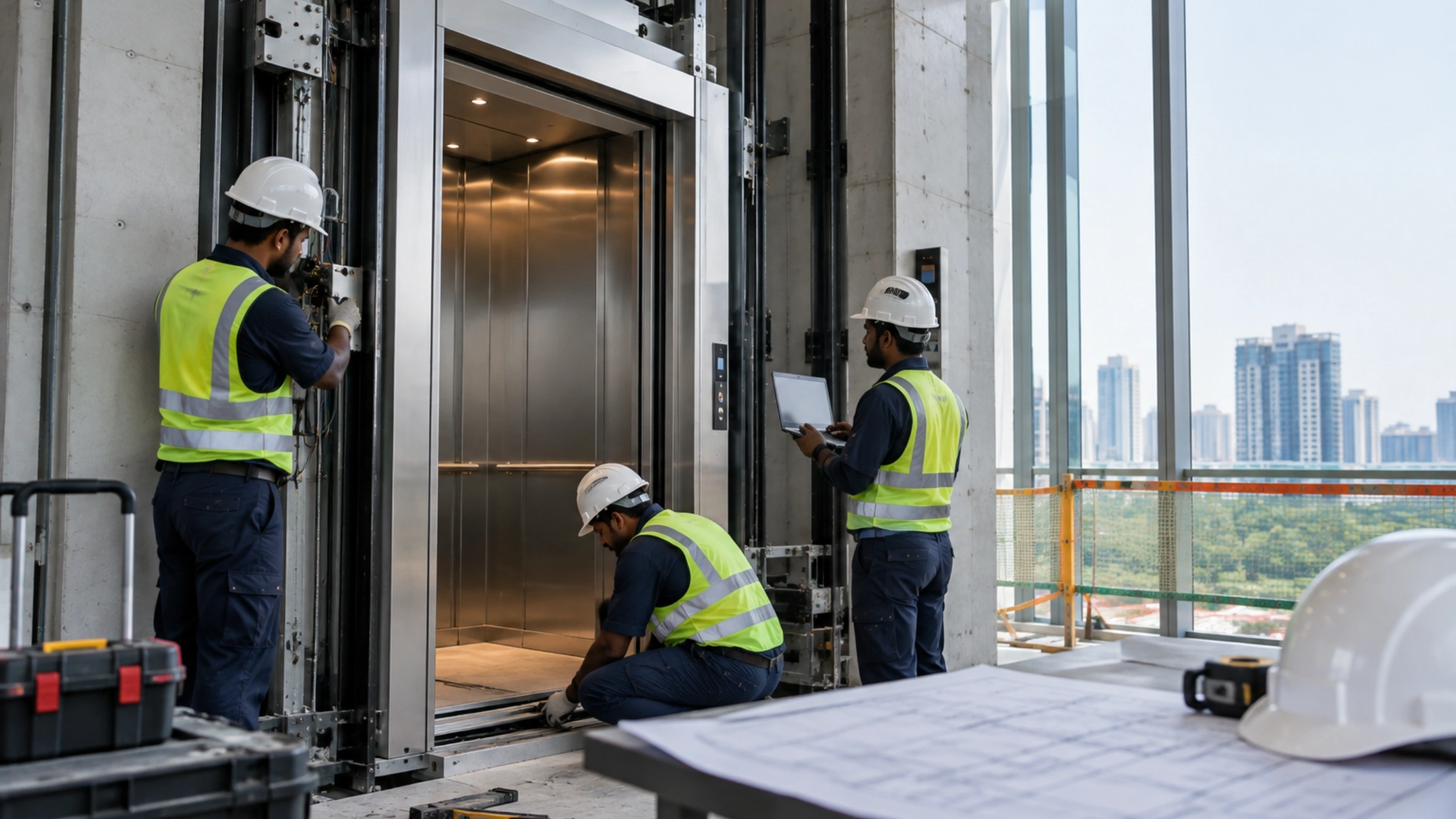

Alt text: Elevator technicians installing a lift at a construction site.
Why Schedules Slip Before the First Rail Goes Up
Almost nothing about a delayed lift is caused by the lift. Manufacturing and dispatch run to a schedule the supplier controls. Erection runs to a schedule the supplier mostly controls. Everything in between depends on your building being ready in a very specific way on a very specific day.
The awkward part is that partial readiness is worthless, and elevator installation services Bangalore crews will down tools rather than work around it. A shaft finished except for the top landing wall still can't take scaffolding. A machine room with no door can't be secured overnight, so no material gets stored. Elevator installation planning works in binary states: the site is ready or it isn't.
Site Readiness: The Civil Checklist That Decides Everything
Site readiness is the biggest single variable, and it's entirely in your control.
Shaft, pit and overhead
The hoistway must be plumb within tolerance, plastered, and free of projecting shuttering or reinforcement. The pit needs to be dry and waterproofed, with a proper ladder. Overhead clearance must match the approved drawing, not the drawing before the revision. Any deviation beyond a few millimetres over the full travel means chipping, and chipping means weeks.
Power, scaffolding, access and storage
Erection needs a temporary three-phase supply at the machine room or controller position. It needs safe scaffolding through the full shaft height, a lockable store within the building for components, and a route wide enough to move guide rails, which arrive in lengths of two and a half to five metres. Narrow stairwells in older Bangalore properties defeat more deliveries than people expect.
Lift Installation Time: What a Realistic Timeline Looks Like
Lift installation time is often quoted as a single figure, which is misleading. Break it into stages instead.
|
Stage |
Typical duration |
Depends on |
|
Site survey and drawing approval |
1 to 2 weeks |
Your architect's response time |
|
Manufacturing and dispatch |
5 to 10 weeks |
Model, cabin finish, customisation |
|
Civil readiness at site |
Varies widely |
Your contractor |
|
Erection and wiring |
2 to 4 weeks |
Travel height, number of stops |
|
Testing and commissioning |
3 to 7 days |
Power sanction, load test |
|
Statutory inspection and licence |
2 to 6 weeks |
Inspection scheduling |
A low-rise residential lift with a ready shaft realistically takes three to six weeks of erection. Total lift installation time from order to legal operation, though, is far more likely to be four to five months once approvals are counted, which is why elevator installation services Bangalore firms quote stages rather than one date.
Weather, Traffic and Working-Hour Realities in Bangalore
Two monsoon spells matter here. A shaft open at the top collects water, and a flooded pit stops work outright until it's pumped and dried. Sensible elevator installation planning schedules pit work and rail alignment outside the heaviest weeks, or budgets for temporary covering.
Traffic shapes delivery in a way outstation suppliers underestimate. Long-vehicle restrictions in central corridors push unloading into narrow night windows, and residential layouts in areas like Jayanagar or Malleswaram often can't take a truck at all, so material transfers to a smaller vehicle. Add apartment association rules that ban noisy work before 9 am or after 6 pm and you lose a chunk of every working day.
Elevator Installation Planning Around Other Trades
Lift work collides with three other trades, and the sequence matters more than the speed of any one of them.
- Civil: shaft, pit, machine room and landing openings must be complete and cured before erection starts.
- Electrical: the main panel, earthing and the shaft lighting circuit need to be live, not just wired.
- Finishing: flooring at each landing should be done to the finished level, because door sills are set to it. Setting sills to an unfinished floor guarantees rework.
Where a project runs several buildings, stagger the lifts. Two towers demanding erection teams in the same week rarely both get one, and elevator installation Bangalore contractors will prioritise whichever site is genuinely ready.
Lift Installation Requirements for Power and Approvals
Two lift installation requirements catch owners out repeatedly.
Power and backup
A traction lift's starting current is well above its running load, and DG backup sized only for lighting will trip the moment the car moves. Confirm the sanctioned load, the DG rating and the changeover arrangement before commissioning day.
Statutory approvals
Karnataka's lift legislation requires permission before erection and a licence before passengers use the lift, with inspection in between. That inspection is scheduled by an authority, not by your contractor, so it sits outside the control of even the best elevator installation services Bangalore providers. Building it into the programme from day one avoids a finished lift standing idle behind a locked landing door.
What Elevator Installation Services Bangalore Teams Need From You
Good contractors will ask for a written readiness confirmation before dispatching material. Take that seriously rather than signing it optimistically. The teams providing elevator installation services Bangalore owners rate highly tend to do a joint site inspection first, with your civil contractor present, and issue a snag list.
Give them a single point of contact who can make decisions. Half of all site delays come from waiting on someone to confirm a finish, a sill level or a payment milestone. Agree three things in writing before dispatch:
- Who supplies and maintains the scaffolding through the full shaft height.
- Who provides temporary three-phase power at the controller position.
- Who secures the shaft and the component store overnight.
Those three items generate most of the arguments once work starts.
Choosing Elevator Installation Services Bangalore Buildings Can Rely On
Judge a supplier on how honestly they discuss delays. A team that quotes four weeks for everything, including approvals, is either inexperienced or telling you what you want to hear. Ask for a stage-wise programme with dependencies marked, and ask what happens to the schedule if the monsoon closes the site for ten days.
Ask also about erection crew availability. Some firms subcontract erection, which is normal, but you want to know whether the crew is dedicated to your building or shuttling between four. That single answer explains most variation in real lift installation time.
Frequently Asked Questions
1. How long does a lift take to install in a G+4 building?
With a ready shaft, correct pit and overhead, and power available, erection typically runs three to five weeks, plus about a week for testing. Counting manufacturing and statutory approval, most owners should plan for four to five months from order to the lift legally carrying passengers.
2. What causes the most delays in elevator installation Bangalore projects?
Civil readiness comes first by a wide margin: unplastered shafts, wet pits, wrong overhead, or landing openings cut to the wrong size. Power sanction is second, and monsoon disruption third. Genuine manufacturing delays are comparatively rare and usually involve customised cabin finishes or imported components.
3. Can lift work start before the building is finished?
Partly. Erection can begin once the shaft, pit, machine room and landing openings are complete and cured, even with finishing work continuing elsewhere. Landing sill levels need finished floor levels, though, so coordinate that with your flooring contractor. Most elevator installation services Bangalore teams will inspect before committing.
4. Who arranges the statutory lift licence in Karnataka?
Usually the supplier prepares and files the applications, but the building owner remains the licence holder and is responsible for renewal and periodic inspection. Confirm in writing whether fees, drawings and inspection attendance are included in your contract price, since these are often billed separately later.
Conclusion
A successful elevator schedule depends as much on construction readiness as it does on the installation team. Builders should finalize shaft, pit, overhead, power, access, scaffolding, and landing requirements well before material arrives. Statutory inspection and licensing should also be treated as real project stages rather than last-minute formalities. BG Elevators can help project teams understand the preparation required before installation, while BG Elevators can support a structured approach to elevator planning, installation, testing, and handover.
