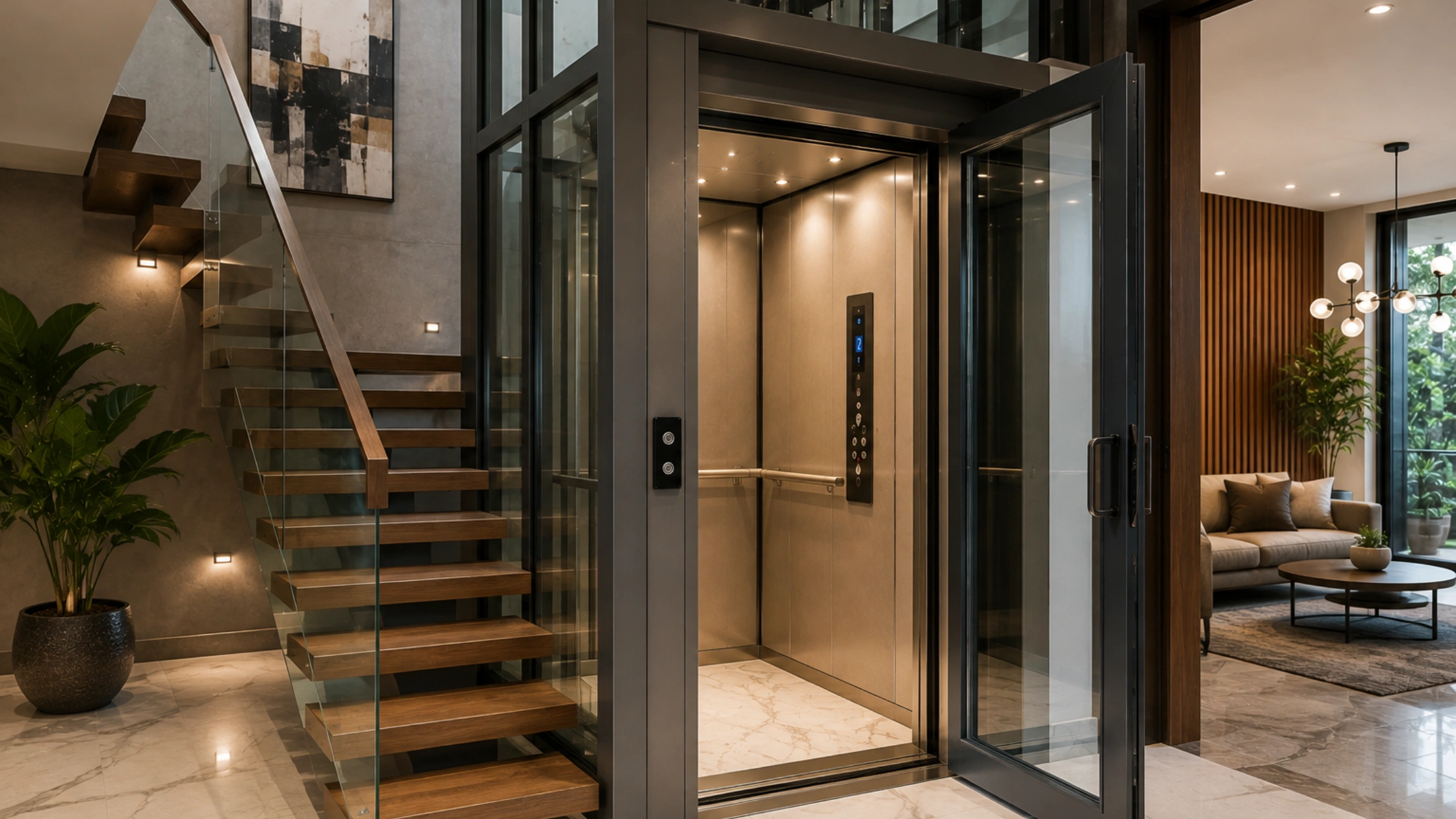

A shaft cast into the wrong corner of a villa is a surprisingly common sight. The void beside the staircase was left as instructed, the slab went up, and only then did the family discover the car was too shallow for a wheelchair or too narrow for comfortable daily use. Villa Elevators Bangalore homeowners install work best when the choice is made at the drawing stage, not after the shell is finished. BG Elevators helps homeowners consider shaft dimensions, capacity, drive type and accessibility requirements before construction decisions become difficult to change.
The reassuring part is that the whole decision reduces to about six variables. Settle those early and the rest, including car finishes and door styling, becomes a matter of taste rather than engineering.
Start With How the Villa Will Actually Be Used
Villa elevators Bangalore families use several times a day are specified very differently from one in a G+1 weekend home off Sarjapur Road. Ask who uses the lift now, who might use it in ten years, and what physically has to fit inside the car. A wheelchair needs roughly 1100 mm of clear car depth and a door opening of 800 mm or wider. If the lift should stay useful into old age, a car that can take a stretcher wants closer to 1600 mm.
Then count trips. A family of four in a G+2 villa might make thirty round trips a day, light duty by any standard. A house doubling as a home office pushes that up, and duty cycle affects motor selection and service intervals more than brochures admit.
Where the Shaft Goes in a Bangalore Villa
Position determines cost, and two placements cover most villa elevators Bangalore builders put in.
Inside the staircase void
Dog-legged stairs on a typical 30x40 or 40x60 site leave a rectangular void roughly 1200 mm to 1600 mm across. That void is the cheapest home for a villa lift Bangalore contractors can deliver, because the shaft borrows structural walls that already exist. Watch the landing widths. If the stair flight narrows below 900 mm to make room, you've bought convenience at the cost of everyday comfort.
External shaft in the side or rear setback
Where the plan is fixed, a steel and glass shaft bolted to the rear elevation works well, preserving internal floor area and looking good on a contemporary facade. Two cautions apply. Setback consumption needs checking against your sanctioned plan, and a glass shaft facing west will cook the car through April and May unless you specify solar-control glazing.
Villa Elevators Bangalore: Choosing the Drive Type
Three drive families cover almost all villa elevators Bangalore installers offer, and the trade-offs between them are real.
Machine-room-less (MRL) gearless traction. The most common specification now. The gearless machine sits inside the shaft at the top, so you skip the machine room entirely. Running costs are the lowest of the three, ride quality is the best, and 0.5 to 1.0 m/s feels natural over four storeys. Pit depth runs around 350 mm to 700 mm with headroom near 2600 mm to 2900 mm.
Hydraulic. A piston pushes the car and the power pack lives in a cupboard that can sit a few metres from the shaft. Pit and headroom needs are modest and it forgives an imperfect shaft. The drawbacks are honest: higher draw on every up trip, oil needing periodic attention, and a warm machine cupboard in summer.
Screw drive and compact home units. Self-supporting, often needing a pit of 50 mm to 100 mm and no built shaft at all, the usual answer for retrofits. Speed is slow, typically 0.15 m/s, and capacity is limited, so they suit two or three people rather than a family plus luggage.
Capacity, Car Size and Door Choices
Capacity here is about comfort, not throughput. Most villa elevators Bangalore suppliers quote land between 204 kg and 408 kg.
Residential elevator Bangalore sizing at a glance
| Capacity | Persons | Internal car (mm) | Clear shaft (mm) | Typical use |
|---|---|---|---|---|
| 204 kg | 3 | 800 x 900 | 1250 x 1300 | Retrofit, tight stair void |
| 272 kg | 4 | 900 x 1100 | 1400 x 1500 | G+2 family villa |
| 340 kg | 5 | 1000 x 1200 | 1500 x 1600 | Wheelchair accessible |
| 408 kg | 6 | 1100 x 1400 | 1600 x 1800 | Large villa, stretcher access |
Doors deserve more thought than they get. Automatic centre-opening or telescopic doors are quieter, safer around children, and make the car feel like part of the house. Manual swing doors cost less and take no shaft width, but they slam, they need someone to close them properly, and they cause more nuisance callouts than anything else on a residential elevator Bangalore homeowners run. Cut the car finish before you cut the doors.
Power Supply, ARD and the Reality of Local Outages
Most villa elevators Bangalore projects specify run on a three-phase 415 V supply, drawing somewhere between 3 kW and 7.5 kW depending on drive and capacity. Some compact models manage on single phase. Confirm this before the sanctioned load is finalised, because upgrading a BESCOM connection afterwards is slow.
An Automatic Rescue Device is not optional in practice. Power dips are routine, particularly through the pre-monsoon squalls in May, and an ARD brings the car to the nearest landing and opens the doors on battery. If there's a DG set, check the changeover is quick enough for a clean restart and that the generator carries the starting current.
Compliance, Safety Gear and Handover Paperwork
Lifts in Karnataka fall under state legislation covering lifts and escalators, so registration, an operating licence and periodic inspection all apply. Equipment design follows the IS 14665 series covering car dimensions, safety rules and installation practice. Ask any supplier of villa elevators Bangalore wide to confirm in writing what is included:
- Overspeed governor and safety gear, plus buffers sized for the rated speed
- Door interlocks on every landing, tested at handover
- Emergency alarm, intercom and battery-backed car lighting
- Fire-rated landing doors where the shaft passes through enclosed floors
- Test certificates, wiring diagrams and the operator licence application
Any supplier who treats that list as optional is telling you something about the rest of the job.
Villa Elevators Bangalore: Indicative Costs
Prices move with specification, so treat any figure as a range rather than a quote. A compact three-passenger home elevator Bangalore families fit into a G+1 typically starts around 12 to 18 lakh rupees supplied and installed. A five-passenger MRL unit for a G+3 more often sits in the 18 to 30 lakh band. A luxury home elevator with a glass shaft, stone flooring and custom panelling runs well past that.
Civil work is separate and easy to underestimate. Shaft construction, pit waterproofing, plastering, the power point and scaffolding usually add one to three lakh. An annual maintenance contract for a villa elevator commonly runs 25,000 to 60,000 rupees depending on whether it is semi-comprehensive or fully comprehensive.
Frequently Asked Questions
1. How long does a villa lift Bangalore installation take?
Erection takes two to four weeks once the shaft is ready and handed over. The longer wait is manufacturing and delivery, typically six to twelve weeks for a standard model and more for a custom car. Statutory registration and the operating licence add a few weeks after commissioning.
2. Can villa elevators Bangalore homes already built still take one?
Usually yes. Compact screw-drive and shallow-pit units are designed for retrofits and need very little excavation. The real constraints are a clear vertical run through every floor, headroom at the top, and a wall or frame able to carry the rail loads.
3. Do I need a machine room?
Usually not. Machine-room-less designs house the drive within the shaft and now cover most home installations. Hydraulic systems still need a small cupboard for the power pack, though it can sit remotely, which is often easier than finding terrace space on a finished house.
4. How much electricity does a home elevator Bangalore villa use?
Less than people expect. A gearless traction unit in a family villa often adds roughly 1,000 to 2,500 rupees a month at normal usage. Hydraulic units consume more per trip, because the pump works on every upward journey and not on the way down.
Conclusion
Choosing between Villa Elevators Bangalore suppliers is really a sequence of early decisions: who the lift serves, where the shaft sits, which drive type matches the building, how much car space is needed, and what safety and accessibility features should be included. Fix the shaft dimensions and electrical requirements before the slab is poured to avoid expensive corrections later.
